装置刚启动时，首先在较低的压力下空气和冷凝水流过疏水阀，通过入口孔托起阀片，再由出口孔排出，当压力、温度上升后，内压上升，推动凝结水量增多，而增大流速，这时阀片下的静压降低，使阀片下落，蒸汽从出口孔中间由四周流向阀片和阀盖之间的间隙，进入压力室，将阀片压在密封环上，关闭阀门。当压力室的蒸汽温度降低，开始冷凝，使压力室内的压力降低，进口压力托起阀片，疏水阀开启进行排水。

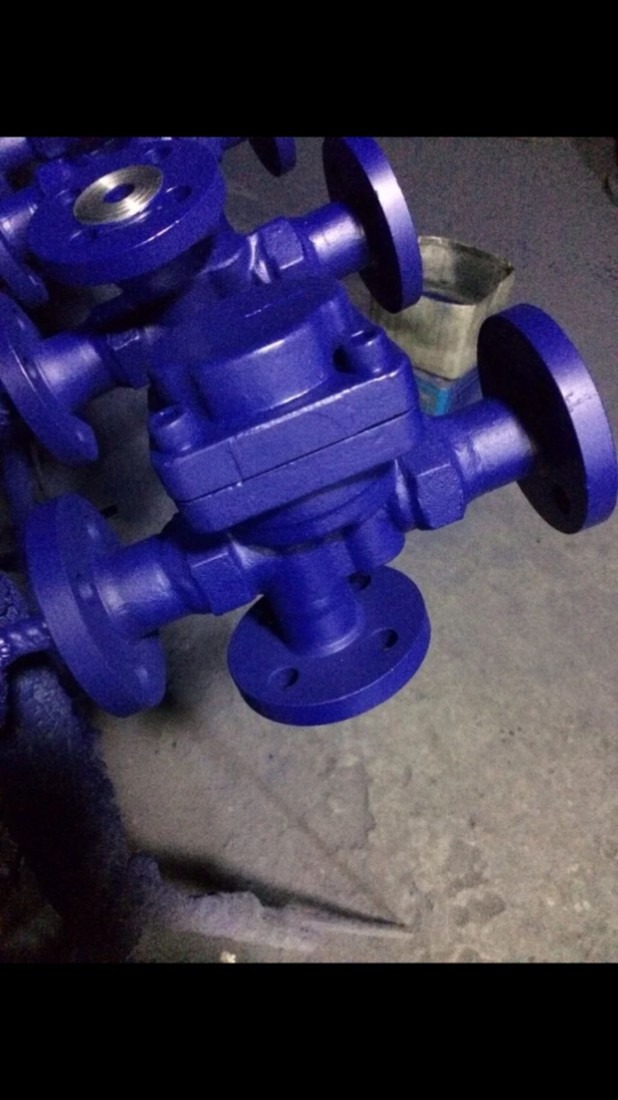

Disc Trap
When starting the device,firstly,the air and condensed water willflow across steam trap under rather low pressure,and lift valveplate through the entrance hole,and then discharge from the exithole.After the pressure and temperature rise,the inner pressurewill also rise,and cause increased amount of condensed water andincreased flow rate,at the moment, the static pressure of valveplate declines which causes the drop of valve plate,and then,thesteam flows from all directions via the exit hole into the gapbetween the valve plate and the valve cover.After steam enters thepressure chamber,it shuts down the valve by pressing valve plateonto the sealing ring.When the steam temperature inside thepressure chamber begins descending and the steam begins tocongeal,the pressure declines in the pressure chamber,and the inletpressure lifets the valve plate,and then the steam trap opens anddischarge water.
优点：
1、结构简单，容易安装和维修，抗水击，排空性能优越。
2、抗水击，对压力突然变化没有影响。
3、可用于过热蒸汽系统。
4、可以使用高压高温的蒸汽管线。
Merits
1.Simple structure,easy installation and maintenance and waterhammer resistant.
2.Water hammer resistant and on effect from abrupt change ofpressure.
3.Adoptable for overheat steam system.
4.Adoptable for high-pressure and high-temperature steampipes.
热动力式疏水阀/THERMO-DYNAMIC TRAP
技术参数/Technique parameter
壳体压力等级 Shellpressure grade | 负荷泄漏率 Loadleakage | 使用介质 Usedmedium | 壳体材质 Shellmaterial | 允许背压率 Permitted backpressure rate |
| 1.6~42MPA | 0.3% | 蒸汽、凝结水 Steam、Condensate water | 锻钢、不锈钢、合金钢 Forgedsteel、Stainless steel、Alloy steel | 75% |
最大工作压差 Maximum operating pressure differential | 使用过热蒸汽 Usesuperheated steam | 最高允许温度 Maximum allowable temperature | 抗水击 Resis | 压力变化范围 Pressure change range |
| 17MPA | 优秀 Excellence | 420℃~550℃ | 适应 Adaption | 适应 Adaption |
| 零部件名称 Part andcomponent name | 材质Material |
| 阀体、阀盖 Valve body、Valve cover | 锻钢、不锈钢、合金钢 Forgedsteel、Stainless steel、Alloy steel |
| 阀片 Valve plate | 高铬不锈钢 High chromestainless steel |
| 阀座 Valve seat | STL合金 STL Alloy |
| 过滤网 Filtrating screen | 不锈钢 Stainless steel |
外形尺寸和重量/Prime out-form dimensions and weigh
产品型号 Product model | 口径(DN) Calibre | L法兰 Flange | L螺纹/焊接 Thread/welding | H1 | H2 | W | 重量(kg) weight | 使用压力范围(MPa) | 公称压力(MPa) Nominal pressure | |
| TD42、TD42F | 15-20 25 | 150 160 | 100 105 | 54 | 64 | 55 | 1.5 | 0.1-4.5 | 6.4 | |
注解
1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2～3倍。
3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。
Note
1.Please provide operating pressure and operating pressuredifference,generating quantity of condensate water,operatingtemperature,connecting mode and standards in selecting productmodels.
2.The load of condensate Water's safety coefficient reaches 2 to 3times in general.
3.Please make sure the drain valve is installed properly,maintainedregularly,cleaned up and operates under the normal condition,so asto extend its service life.
