进店逛逛特点：

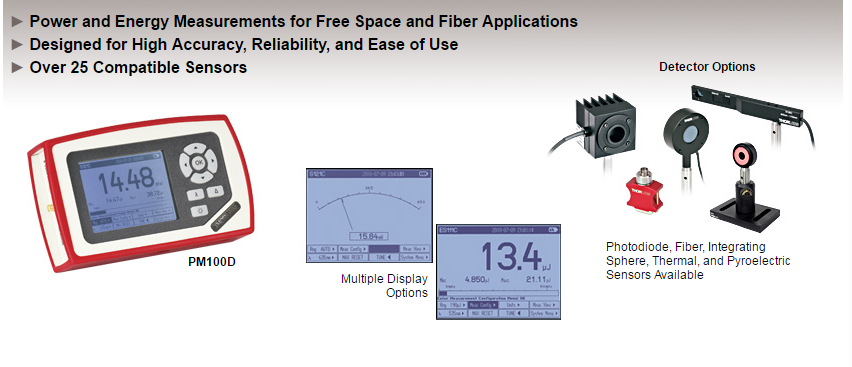

· 小型手持式功率和能量计表头
· 4英寸大屏LCD显示
· 内置长寿命锂电池
· 2 GB SD卡用于数据存储
· 表头经校准且包含校准证书
· 1 GB U盘，内含软件(包括LabVIEW™、LabWINDOWS™ /CVI驱动)和操作手册
· 存储箱可以存储表头和一个探头
常用探头选择：
|
Item #a |
S401C |
S405C |
S415C |
S425C |
|
W**elength Range |
190 nm - 20 µm |
190 nm - 20 µm |
190 nm - 20 µm |
190 nm - 20 µm |
|
Optical Power Range |
10 µW - 1 W (3 Wb) |
100 µW - 5 W |
2 mW - 10 W (20 Wb) |
2 mW - 10 W (20 Wb) |
|
Input Aperture Size |
Ø10 mm |
Ø10 mm |
Ø15 mm |
Ø25.4 mm |
|
Active Detector Area |
10 mm x 10 mm |
10 mm x 10 mm |
Ø15 mm |
Ø27 mm |
|
Max Optical Power Density |
500 W/cm² (**g.) |
1.5 kW/cm² (**g.) |
1.5 kW/cm² (**g.) |
1.5 kW/cm² (**g.) |
|
Linearity |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Resolutionc |
1 µW |
5 µW |
100 µW |
100 µW |
|
Measurement Uncertaintyd |
±3% @ 1064 nm |
±3% @ 1064 nm |
±3% @ 1064 nm |
±3% @ 1064 nm |
|
±5% @ 190 nm - 10.6 µm |
±5% @ 250 nm - 17 µm |
±5% @ 250 nm - 17 µm |
±5% @ 250 nm - 17 µm |
|
|
Response Timee |
1.1 s |
1.1 s |
0.6 s |
0.6 s |
|
Cooling |
Convection (Passive) |
Convection (Passive) |
|
|
|
Housing Dimensions |
33.0 m x 43.0 mm x 15.0 mm |
40.6 mm x 40.6 mm x 16.0 mm |
50.8 mm x 50.8 mm x 35.0 mm |
50.8 mm x 50.8 mm x 35.0 mm |
|
(Without Adapter) |
(1.30" x 1.69" x 0.59") |
(1.60" x 1.60" x 0.63") |
(2.00" x 2.00" x 1.38") |
(2.00" x 2.00 |
